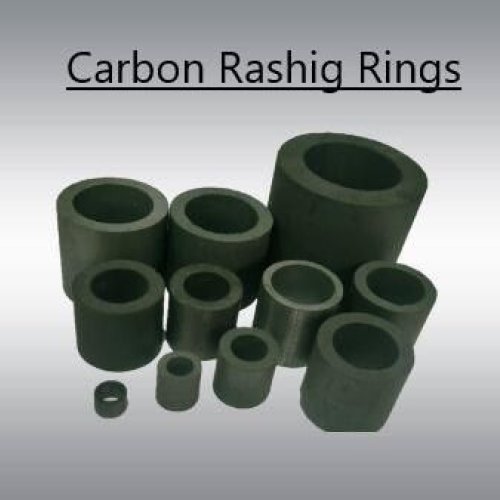

Carbon Raschig Rings



We are a trusted name as Carbon Raschig Rings Manufacturer, Exporter and Supplier in Maharashtra, India. The Carbon Rasching Rings (Tower Packing carbon) that we offer are made from high purity carbon, electric furnace firing at a temperature 950oC. Therefore, they involve entirely carbonizing process. With more than 99% carbon and very low ash content, the Carbon Raschig Rings are strongly resistant to all acids / Alkalis / Solvents / Mixtures & many more chemicals. Carbon Raschig Rings are useful in petrochemicals project for tower packing carbon, having long life, high efficiency for many corrosive & temperature separations as well as shock resistance and high temperature stability. Also, Carbon Raschig Rings can be used in Halogen acid processing, Hydrofluoric acid manufacturing, as well as sodium / Potassium Hydroxide scrubbers & chlorine – hydrochloric mixtures.


Specifications

Properties Unit Result
Density gms/cc 1.5-1.6
Compressive Strength (V) gms/cm2 350-400
Linear Load (horizontal) kg/cms. > 10 kg.
Porosity % 6-8
Water absorption % 2-3
Carbon Content % 99
Ash content % 0.5
Temperature Resistivity C 600 & More
Acidic Resistivity Loss of wt. <1 % in H2SO / HF / H3PO4 / Hcl
Alkaline resistaivity Loss of wt. <1 % in Na oH / Koh & all similar alkalies: con. Upto 40%

Sizes Available & Technical Data Sheet

Carbon Rasching RingsSize ODBulk WeightSurface AreaFree SpaceWall ThicknessNo. of rings
-InchMmlb/ft.3kg/m3ft.2/ft.3M2/M3%InchMmM3Ft3
½ x ½½1325400120393671/161.537600010600
¾ x ¾¾19.53453574242671/83.201103553125
1 x 1125.53351954175673/164.5460001302
1 ¼ x 1 ¼1 ¼323250438124677/325.018000510
1 ½ x 1 ½1 ½38325093812467¼6.014125400
1 9/16 x 1 9/161 9/1640304763712067¼6.012200345
2 x 2251243802892689/327.05880166
3 x 33761828314477611/328.5141140
