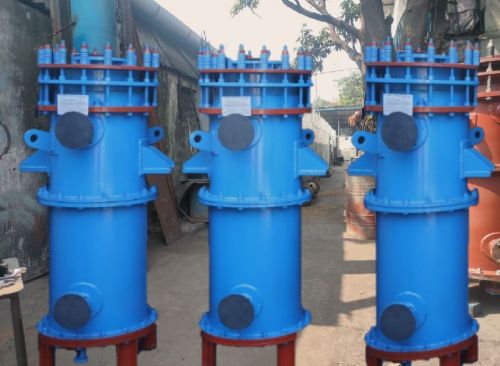

Graphite Heat Exchanger


Graphite Heat Exchanger

At Globe Carbon industries, we have requisite mechanism and expertise to fabricate Graphite Heat Exchanger – the most advanced design of Cylindrical & Rectangular poly block type heat exchanger in vertical & Horizontal position. The construction of Heat Exchanger at our sophisticated unit is basically done by phenol/PTFE impervious graphite block of standard size & shape. The Graphite Block design incorporates set of axial holes & transverse holes. Axial holes carry process fluid & transverse holes carry service fluid. A number of effectively sealed passes both on process side & service side can be provided to get optimum fluid velocities to achieve best heat transfer co-efficient. We provide technologically advanced equipment and that’s why are the widely sought-after Graphite Heat Exchanger Manufacturer, Exporter and Supplier in Maharashtra, India.

Area of Application
  • To transfer the heat between two corrosive liquids / to cool down the various corosive liquids. (Graphite cooler).
  • Condensation of corrosive vapours. (Graphite condenser).
  • Heating of corrosive liquids. (Pre-boiler).
  • Pickling line heaters in steel industries for heating HCL & combination of HNO3 & HF (Pre-boiler).
  • Preheated for evaporators.

Features
  • Available in vertical or horizontal model as per requirement. High efficiency of heat Transfer Area.
  • Highly resistant to corrosion ; Thermal shock ; & Abrasion resistance.
  • Due to modern design, most compact utilization of floor space & height.
  • Higher capacity HTA can be increased to the existing unit is possible.
  • Model : Cylindrical – V & H / Rectangular – V & H / shell & tube Type – V & H.
  • Sizes : Cylindrical – Dia. 300, 335, 427, 598, 700 & 900 & Capacity – 1M2 to 90 M2 7 Rectangular 1M2 to 38 M2 & shell & tube type – 10 M2 to 200 M2.
  • HCL recovery system & H2SO4 dilution system is available with Graphite Heat Exchanger.


Specifications

Properties Unit Result
Bulk Density gms/cc 1.78 to 1.82
Porosity % < 4
Water absorption % < 2
Comp. Strength Kg/cm2 500-600
Flexural Strength Kg/cm2 200
Abradability Index On Morgan scale 120
Thermal Conductivity Kcal / M hr oC at 100 oC 120
Chemical Resistance - Excellent chemicals resistance of all acids / Alkalies / Mixtures / Solvents upto 180 oC

  • Graphite Heat Exchanger Vertical

  • Graphite Heat Exchanger Horizontal
